High power LED flood light for outdoor stadium court lighting solutions

China professional industrial LED flood lights manufacturer top quality

2017 NEW LED high mast flood light replace 800W 1000W 1500W 2000W MHL Halogen bulbs

Dimming functions optional

+Three in One (1-10V DC / PWM / Resistance)

Day light sensor

Different beam angle for different lighting appliations: 15°, 30°, 60 °

Application for high mast lighting, indoor / outdoor stadium sport courts, high way, park,station, port, stage. etc.

Specifications

Electrical Specifications

Item No.: GL-FL-1000W

Power: 1000W

Input voltage: 120V / 230V / 240V / 277V / 347V / 480V AC optional 50/60Hz

Power Factor(PF): >0.95

Driver efffiency ( %): >92%

Photometric Specifications

Luminous Flux: 100000Lm (+Lumen tolerance +/- 5%)

Luminous efficiency: 100Lm/W

LED spec.: 60pcs  CREE XHP70  /  TD 1A1AC3R

Color Rendering Index(CRI): Ra>70

LED Color Temperature : Warm White: 2700K/3000K

                                    Natural White: 4000K

                                    Day white: 5000K

                                   Cool White: 5700K/6500K

Beam Angle: 15° , 30° , 60°

Dimmable. Daylight sensor,

Mechanical Specifications

LED Emitter Life: 50,000 Hours

IP Rating: IP67 waterproof

Heat Radiator: Full Fin Aluminum heat sink + built in copper cooling design

Certification: CE RoHS

Warranty: 5 years warranty

Package: 1pc/CTN

G.W.: 36.5kg/CTN

MEAS: : 55*53*63cm

Features

1000W LED Light distribution curve

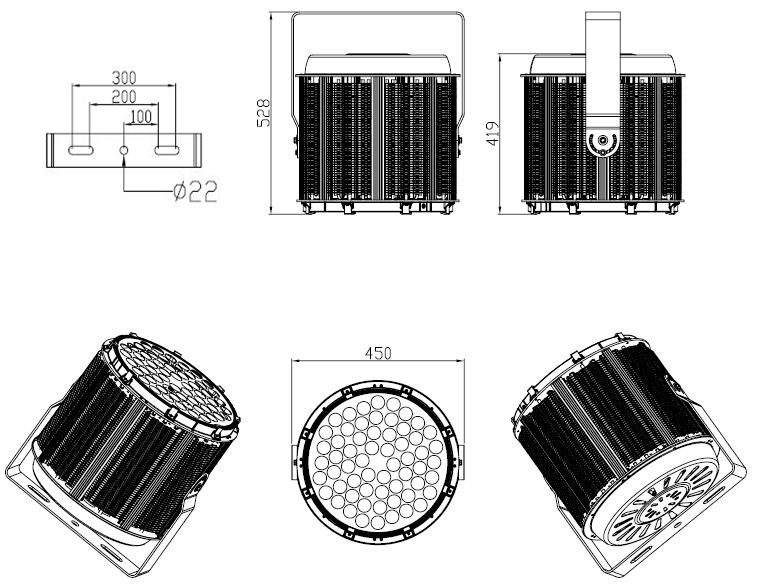

1000w ED flood light Dimension

1000w high mast LED flood light Package

Outdoor LED flood light Application

IES file, dialux lighting representation available,  contact us at info@golonledlight.com   Tell: +86 0755 33501380
